Folding (W) Cabin Door
Folding (W) Cabin Door
24 V DC brushed motor.
Battery and photocell output.
Operates with 220 V AC and LIR voltage.
Operates with a single signal (shut-off signal).
Operates with limit switch.
Safe operation with door jamming algorithm.
Reverse motor connection warning.
Possibility of use with or without encoder.

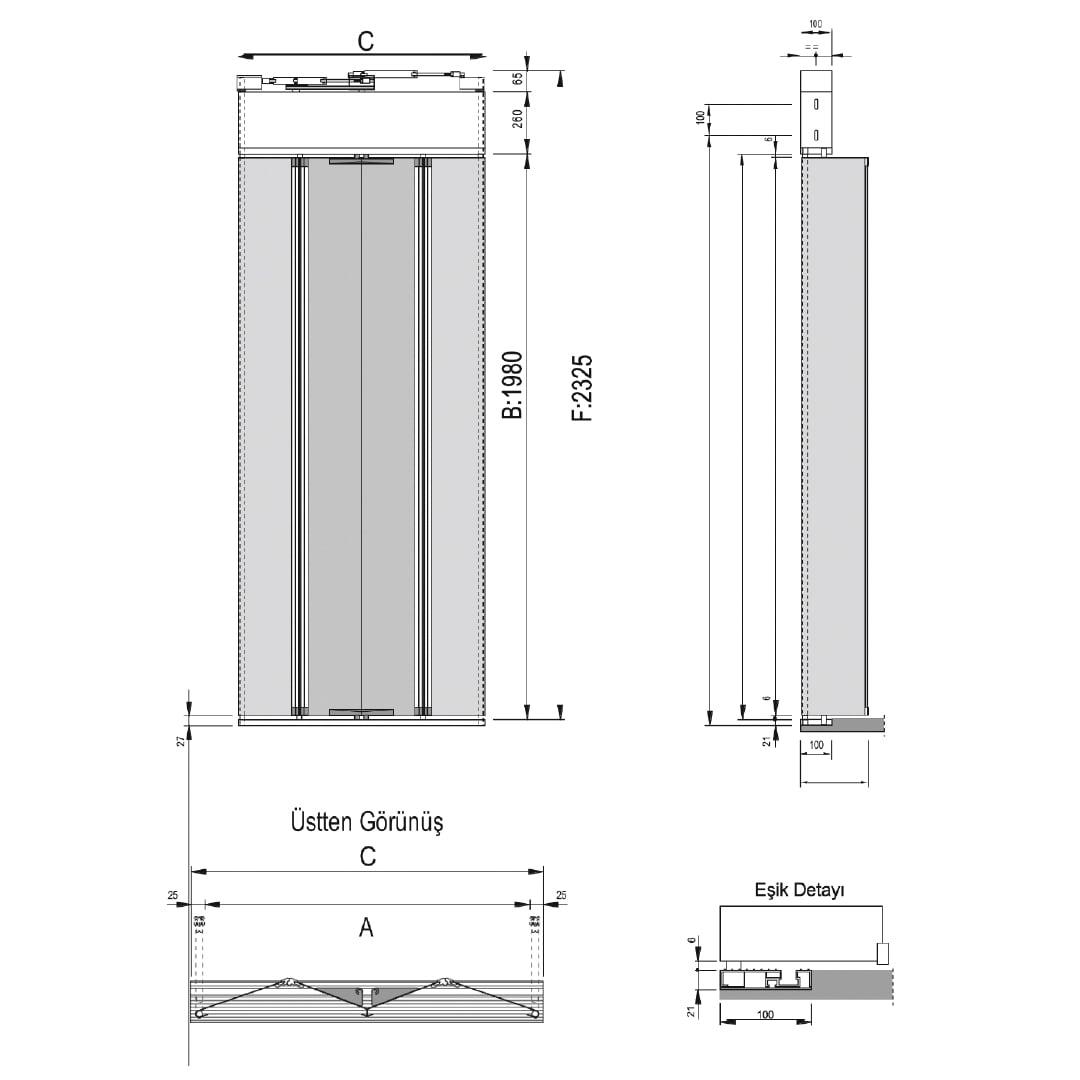

Teknik Datalar
|
A |
500 |
550 |
600 |
650 |
700 |
750 |
800 |
850 |
900 |
950 |
1000 |
1050 |
1100 |
1150 |
|
C |
550 |
600 |
650 |
700 |
750 |
800 |
850 |
900 |
950 |
1000 |
1050 |
1100 |
1150 |
1200 |
|
Zaman / Time (s) |
2,8 |
2,6 |
2,6 |
3,4 |
3,4 |
3,4 |
3,4 |
3,7 |
3,7 |
3,7 |
3,9 |
3,9 |
3,9 |
3,9 |
|
Ağırlık / Weight (kg) |
35 |
39 |
41 |
43 |
46 |
48 |
50 |
52 |
54 |
56 |
58 |
60 |
62 |
64 |
