Balance Chain
Balance Chain
Kullanım Alanları

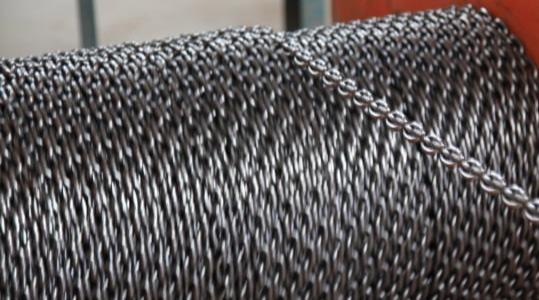

STRUCTURE: It is a PVC coated chain made of high-quality electric arc welded material. The protective insulation is printed with black markings on a grey outer sheath.
PURPOSE OF USE: It is used to balance the variable dynamic load caused by the weight of the suspension rope. It provides noiseless operation. It prevents dangerous situations that may arise due to excessive differences in the applied load.
Teknik Datalar
|
TİP Model |
DIŞ ÇAPI Outher Diameter |
BİRİM AĞIRLIĞI Section Weight |
|
DNG - 1.12 KG |
24,0 ± 2,00 |
1,12 |
|
DNG - 1.50 KG |
27,0 ± 2,11 |
1,50 |
|
DNG - 1.88 KG |
30,0 ± 2,20 |
1,88 |
|
DNG - 2.24 KG |
32,0 ± 2,30 |
2,24 |
|
DNG - 2.63 KG |
35,0 ± 2,20 |
2,63 |
|
DNG - 2.98 KG |
38,0 ± 2,50 |
2,98 |
|
DNG - 3.73 KG |
42,0 ± 2,50 |
3,73 |
|
DNG - 4.47 KG |
44,0 ± 2,70 |
4,47 |
|
DNG - 5.22 KG |
48,0 ± 2,80 |
5,22 |
|
DNG - 5.96 KG |
52,0 ± 2,90 |
5,96 |
